RAU® Climatewall S:
minimum space requirement
The new name of our RAU® Rock Extensive noise barrier is now RAU® Climatewall S.
The narrowest version of the green noise barrier
RAU® Climatewall S is the ideal choice for anyone looking for effective and sustainable noise protection. With minimal space requirements, extensive customization options and an extensively greenable surface, it meets the highest standards of functionality and aesthetics. Its narrow elements make it suitable for use even where space is limited.
- Slim design: only 13 cm wide - ideal for confined spaces
- Extensive greening options: integrated trellis promotes plant growth
- Excellent sound insulation ensures effective noise protection
- Durable materials and robust vandalism protection
- Flexible combinability: compatible with glass or other wall types for a wide range of applications
RAU® Climatewall S
Documentation
Advantages
Sustainable materials
RAU® Climatewall S consists largely of renewable raw materials when using Canwool® hemp fiber absorbers and is completely recyclable.
Customized adaptation
Special lengths, special heights and optional pitched roofs enable individual solutions.
Protection for technical systems and parking garages
Ideal for enclosing systems such as transformer stations, combined with high sound insulation and protection from the weather. Perfect enclosure for parks.
Sustainable overall system
RAU® Climatewall S combines noise protection, greening, biodiversity promotion and water management in a single system - ideal for urban spaces where sustainability and quality of life are considered together.
Where can RAU® Climatewall S be used?
- Municipal noise protection measures
- Commercial facilities
- Technical enclosures
- Green space projects
- Protection of infrastructure projects
- Sustainable architecture projects

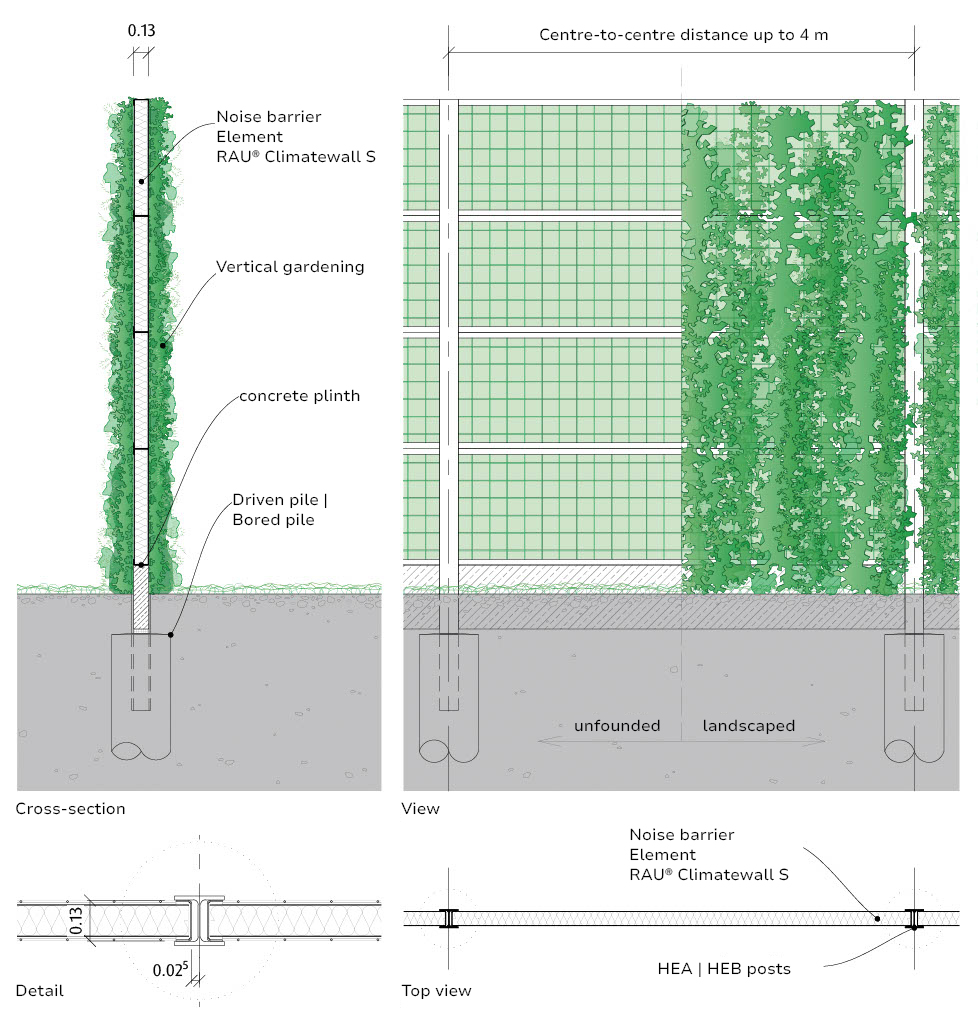

RAU® Climatewall S assembly steps
1. integration into existing supporting structures
- The noise protection elements are planned individually and are delivered to the construction site fully assembled.
- They are inserted into hot-dip galvanized steel beams (HEA/HEB profiles), which serve as a load-bearing structure.
- These beams are firmly anchored in the ground using driven pipes or bored piles to ensure maximum stability.
- Alternatively, the elements can also be integrated into existing concrete or steel systems.
2. stable anchoring of the supporting structure
- The concrete base serves as splash protection and forms the transition to the area in contact with the ground, protects the noise protection elements from moisture and increases durability.
- The previously described foundation piles (driven piles or bored piles) serve as the foundation and ensure secure and permanent anchoring.
- The combination of steel girders and modular elements ensures resistance to weathering and mechanical loads.
3. possible combinations with other materials
- RAU® Climatewall S elements can be flexibly combined with other materials such as wood, aluminum or glass.
- This results in customizable noise protection solutions that meet both functional and aesthetic requirements.
4. extensive greening possible
- Optionally, trellises or planting systems can be added to create a natural greening of the noise barrier to enable natural greening of the noise barrier.
- Green areas improve the microclimate and ensure harmonious integration into the surroundings.
5. slim design for flexible areas of application
- With a shallow installation depth, RAU® Climatewall S units are ideal for projects with limited space.
- The noise protection elements can be adjusted to individual heights and widths and allow center distances of up to 4 meters.
Full service for you
RAU® Klimawand S is ideal for architects, engineering offices, local authorities and construction planners who value sustainable, space-saving and effective noise protection solutions – for example along roads, railroad lines or in demanding urban development projects.
This sustainable and space-saving system meets the highest standards of functionality, design and environmental awareness. Design a harmonious and future-oriented solution for your noise protection with us!
